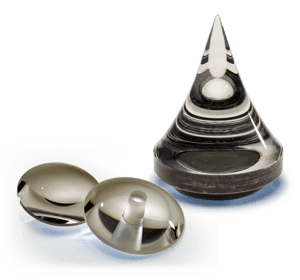

Aspheric Optics

Optical systems integrators rely on Optimax to deliver high-quality aspheric lenses with the most precise focusing properties. Precision asphere manufacturing requires the right technology and know-how. We have one of the largest teams of technical experts in the industry, with years of experience tackling critical issues in aspheric lens manufacturing. Our unique expertise in specifying, manufacturing, tolerancing, and measuring aspheres allows us to develop innovative and collaborative partnerships with our customers, adding the maximum value to end-users.

Our aspherical lenses enable optical designers to overcome the intrinsic aberrations associated with spherical lenses, and to reduce system size and weight, ultimately leading to optical setups that are more compact and efficient than conventional systems. Optimax specializes in manufacturing high-quality aspheric lenses; leading the way with unmatched investment in cutting-edge equipment and testing, this allows us to develop deeply collaborative partnerships with our customers, adding maximum value to end-users.

Aspheres

REQUEST A QUOTE

Our quotes are structured to offer standard pricing and delivery – quicker delivery options are available upon request.

START HERE

LEARN FROM THE EXPERTS

Discover how Optimax is changing the future of optics, and view our extensive library of resources.

START HERE

JOIN OUR TEAM

We are looking for individuals that are committed to lifelong learning and creating value through their hard work.

START HERE
Aspheres

What is an Asphere?

An asphere is an optical element with one or more aspheric surfaces – a complex surface with non-constant curvature. These unique geometries have the ability to impart superior performance to optical systems by mitigating spherical aberrations. For imaging systems, aspheres enable clearer, sharper images. Additionally, a single aspheric optic can often be used in place of multiple optical elements, allowing for smaller and lighter systems.

Specifying Aspheric Optics

Specifying an asphere begins with a custom aspheric form, often fit to the Forbes Q Polynomial (Figure 1) or the Even Aspheric Equation (Figure 2).

Describing form involves specifying Vertex Radius (I/C). Conic Constant (k) and applicable Aspheric Coefficients (a). Including a Sag Table (Figure 3) provides reference information to check correct data entry for each manufacturing or metrology tool used. We accept asphere designs from our customers in manufacturing drawing format or by optical design software files (preferably, Zemax).

Our team is well versed in providing manufacturability feedback and providing cost and lead time trade-offs for various tolerancing schemes. If you have a question about your design, don’t hesitate to contact Optimax.

ORDER NOW

Forbes Q Polynomial

Aspheres

Figure 1

Even Aspheric Equation

Aspheres

Figure 2

Sag Table

Aspheres

Figure 3

Manufacturing Aspheric Lenses

The foundation of our optics manufacturing expertise is the breadth of our metrology knowledge. After all, as the old adage states, “if you can’t measure it, you can’t make it.” Our metrology solutions range from industry-available tools to Optimax-built systems, including custom interferometric test set-ups, stitching interferometry, non-contact and contact profilometers, and high-precision CMM instruments.

A wide range of manufacturing platforms accompany this wide range of metrology tools – again, industry-available and Optimax-built tools for aspheric grinding, polishing, deterministic finishing, and smoothing. This wide range of solutions allows us to provide customers with high-quality, precision aspheres with few limitations.

OPTICS

Application Solutions

Learn how Optimax Manufactures the Future in your market.
LEARN MORE
OPTICS

Engineered Solutions

Learn how Optimax is leading the way in optical innovation.
LEARN MORE

Technical Expertise

Do you want to learn more about our optical manufacturing innovation? Refer to our Knowledge Center to read technical papers on, aspheres, business leadership, coatings, freeform optics, innovative optics manufacturing, and lens tolerancing & inspection.

Aspheric Optics

Robotic polishing in asphere manufacturing

Optimax improved the reliability of asphere polishing platforms at a demonstrated level. Download our technical paper today to learn about our results.

Aspheric Optics

Improving Lens Performance With Transmitted Wavefront Error Testing

Tolerancing optical lenses in transmission rather than reflection offers financial, performance and delivery advantages to a given class of aspheric optics.

Aspheric Optics

Specifying, Manufacturing and Measuring Aspheric Lenses – Part II

The similarities and differences between tolerancing, manufacturing, and measuring spherical and aspheric surfaces are important.

Aspheric Optics

Asphere Manufacturing Considerations for the Designer

There are many topics to consider during aspheric lens design, including geometrical restrictions that hinder producing particular aspheric shapes. Understanding these restrictions will help drive costs.

Aspheric Optics

Trials and Tribulations of Optical Manufacturing: Asphere Edition

Optimax Systems, Inc., a leader in quick delivery prototype optics, has been manufacturing aspheric lenses for more than 20 years. Along the way, we have learned many lessons and provide …

Aspheric Optics

Practical Design Software Eases Asphere Manufacturability

Recent design methods and software advances make it much easier to design aspheric surfaces that actually work in production and test by considering manufacturability issues at the earliest possible stage …

Aspheric Optics

Specifying, Manufacturing and Measuring Aspheric Lens – Part I

A basic survey of specifying aspheric forms, function and manufacturing and testing
