## Wedge Lens

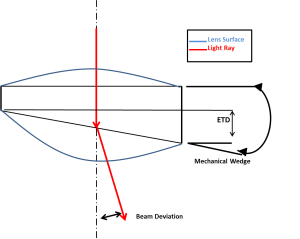

**CONTROLS: **Location of once center of curvature relative to some other item.  It may be related to another center of curvature, a plane in space, or a physical datum.

**RELATED TERMS:**  Edge Thickness Difference (ETD), Edge Runout (ERO), Wedge, Mechanical Wedge, Total Indicated Runout (TIR), Beam Deviation

**UNITS:** Linear units or angular units

**SPECIFICATIONS MUST CONTAIN:** Relationship between a center of curvature and the reference.

**OPTIMAX PREFERRED SPECIFICATION:** ETD

**REASONS:** Directly measured on the machine or with little specialized equipment

**MANUFACTURING STANDARDS:** ISO-10110-6
